Description
Max Power CT165 Tunnel Bow/ Stern Thruster – Electric 24 Volts
Smooth & Simple piloting

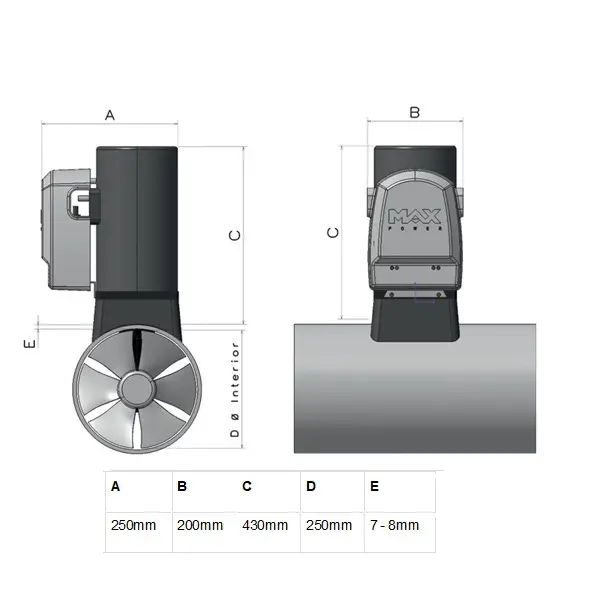

The 24V CT165 is ideally suited to motor boats and deep footed sailing yachts ranging from 40’-62’. Manufactured using composite materials, this model has twin propellers, a 250mm diameter tunnel and a thrust rating up to 160/352 (kg/lbs).
This model integrates all the unique features of the Max Power electric tunnel thrusters range, ensuring a long and maintenance free lifespan.
• Patented composite drive legs
• Zero maintenance
• Case hardened spiro-conical gears
• Line shields
• Purpose-built DC motors
• Electronic control boxes for unrivaled safety features
• Safe, high-power connections
• Purpose-built DC contactors with high specifications
Code |
Voltage |
Thrust @ 22 V |
Thrust @ 24 v |
Propellers |
Power |
Weight |
317557 |
24 v |
165 kgf / 363 lbs |
185 kgf / 407 lbs |
2 |
11.88 kW / 15.9 hp |
36 kg |
Please let us know if you need help with the installation.
