Max Power CT HYD 225 (11cc) Hydraulic Tunnel Thruster

Description

Tunnel Bow/ Stern Thruster – Hydraulic Tunnel Thruster

The CT HYD 225 is designed for motor yachts and deep footed sailing yachts ranging from 45’-70’.

 Manufactured using composite materials, this twin propeller model has a 250mm diameter tunnel, a thrust rating up to 225/495 (kg/lbs) and integrates all the unique features of the hydraulic tunnel thruster range.

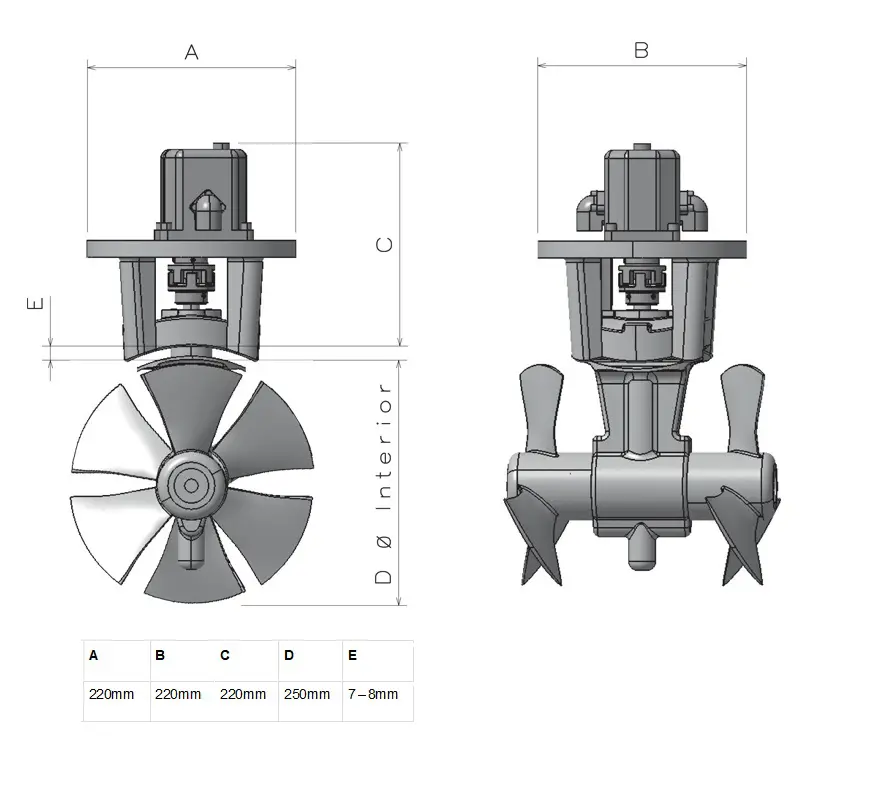

CT225 – 11 cc Specifications

• Typical Boat Size – 45 to 70 foot

• Maximium Thrust – 200kg

• Hydaulic power – 13.5kW

• Tunnel Diameter (Inside) – 250mm

• Tunnel Thickness – 7 to 8mm

• Weight – 19 kg
