Description

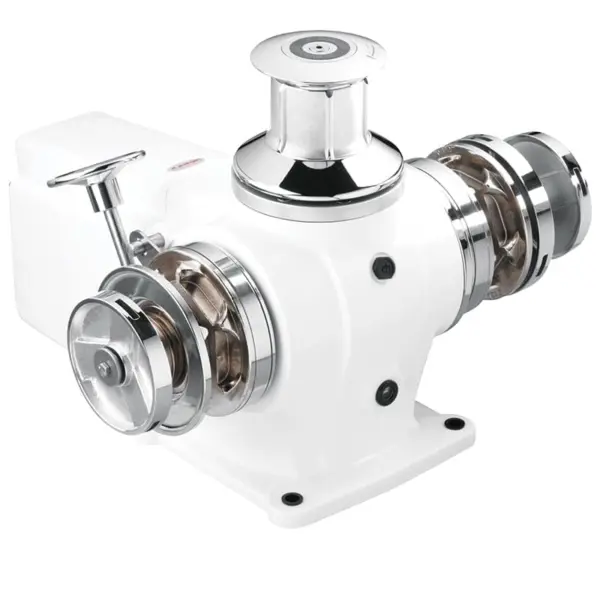

Windlass – Titan anchor winch
Anodised Aluminium & White polyester coating Aluminium
- Independent gypsy and drum/ winch/ capstan operation
- Manual Chain/ Anchor release
- Manual override
- Heavy Duty IP-66 rating for the electric motor
- 3 year limited warranty
What comes in the box? Windlass with chain gyspy, Dual direction solenoid pack, Handle & CD for instruction manual.
When making your selection on the chain size, all of our gypsy are based on standard Australian Short link "L" grade chain. If you require or have different sized chain, please contact us with the chain size and Pitch measurement.
|
Power |
24 volts |
230 volts – 1 PH |
230 volts – 1 PH | Hydraulic – 9cc |
|---|---|---|---|---|
|
Motor Size |
2300 watts |
3600 watts |
3600 watts | * |
|
Consumption |
140 Amps |
* |
* | * |
|
Max. Pull |
2700kg |
3400kg |
3400kg | 3400kg |
|
Lift Working Load |
430kg |
540kg |
540kg | 540kg |
|
Hauling speed |
18m per min |
11m per min |
11m per min | 11m per min |
|
Hydraulic Pressure |
* | * | * | 200 Bar |
|
Hydraulic Flow |
* | * | * | 32 litres per min |
|
Suitable for boat size |
55 to 80 foot |
60 to 85 foot |
65 to 95 foot | 65 to 95 foot |
| TITAN | GYPSY TYPE | MODEL | LOFRANS PART NUMBER | |||
| 2300 W – 24 V Anodised Aluminium | 3600 W – 230 – 1 PH Anodised Aluminium | 3600 W – 230 – 1 PH White Aluminium | Hydraulic – 9cc – Anodised Aluminium | |||
| With Drum | 12mm ISO 4565 / 13mm DIN 766 | Type A | 404724 | 600846 | 602423 | |
| 14mm, DIN 766 | Type A | 600072 | 600847 | 602424 | ||
| 12mm ISO 4565 / 13mm DIN 766 | Type B | 428938 | 602468 | |||
| 14mm, DIN 766 | Type B | 426415 | 602469 | |||
