Description

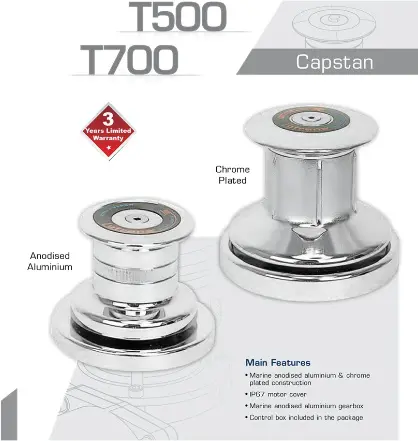

T500 Wrapping Capstan
Capstans are normally installed on the stern of the boat for mooring operations
The range of Lofrans wrapping capstans are designed for boats from 18 up to 150 feet and are used in recreational, fishing and commercial vessels. They are controlled by a pair of foot switches close to the capstan, so that the operator can have his/her hands free for rope handling.
Main Features
|
Motor Size |
Power |
Description |
Consumption |
Max. Pull |
Lift Working Lift |
Max. Lift Load |
Hauling Speed |
Weight |
|
500 watts |
12 volts |
Chromed Bronze |
60 amps |
670kg |
85kg |
335kg |
20 to 25 m per min |
11kg |
|
500 watts |
12 volts |
Anodised Aluminium |
60 amps |
670kg |
85kg |
335kg |
23 to 26 m per min |
9kg |
