Description

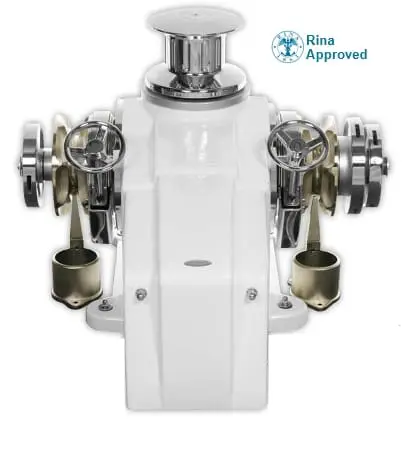

Windlass – Super Ercole anchor winch
White Polyester coated Marine Aluminium
- Independent gypsy and drum/ winch/ capstan operation
- Manual Chain/ Anchor release
- Manual override
- Heavy Duty IP-44 rating for the electric motor
- 3 year limited warranty
Standard Equipment – What comes in the box?
- Complete Windlass with selected choice of chain gypsy and motor size
- Dual direction Solenoid pack
- Handle
- CD/ Instruction manual
If you require or have different sized chain, please contact us with the chain size and pitch measurement.
| Power | 24 volts | 400 volts | * |
|---|---|---|---|
| Motor Size | 3500 watts | 5500 watts | Hydraulic – 11cc |
| Consumption | 240 amps | * | * |
| Max. Pull | 5000kg | 7000kg | 7000kg |
| Max. Lift Load | 870kg | 1670kg | 1670kg |
| Hauling speed | 14 to 28m per min | 17m per min | 18m per min |
| Hydraulic Pressure | * | * | 200 Bar |
| Hydraulic Flow | * | * | 40 litre pre min |
| Suitable for boat size | 90 to 120 foot | 95 to 125 foot | 100 to 135 foot |
| SUPER ERCOLE | GYPSY TYPE | MODEL | LOFRANS PART NUMBER | ||
|---|---|---|---|---|---|
| 3500 W – 24 V | 5500 W – 400 V | Hydraulic – 11cc | |||
| With Drum | 16mm | Type A | 404957 | 602501 | 602488 |
| Type B | 426414 | 602504 | 602491 | ||
