Icom – IC-M85E Marine VHF Handheld Transceiver

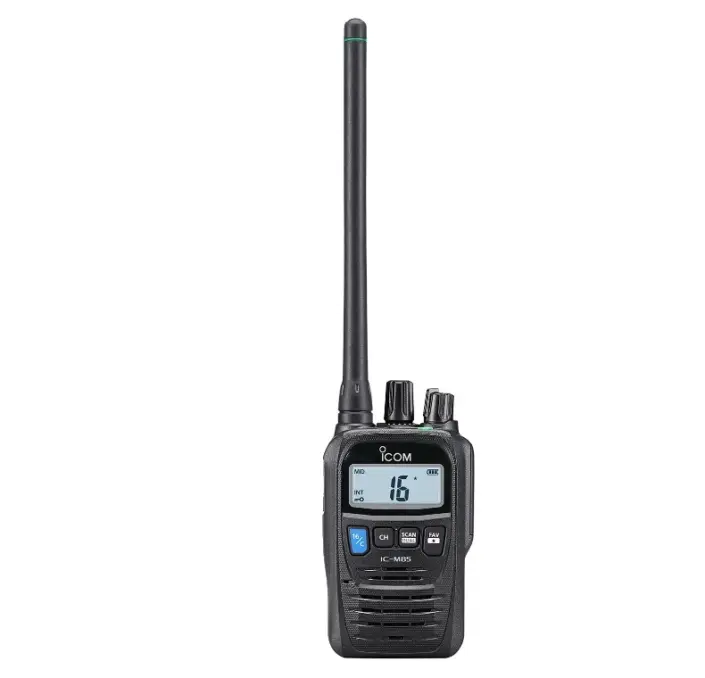

IC-M85E Marine VHF Handheld Transceiver

Marine and PMR Hybrid for Professional Use

Compact and Lightweight

• The IC-M85E is the most compact (W×H×D: 56 × 92 × 36.2 mm) and lightweight (weight: 281 g (with BP-294, FA-SC58V and MBB-3)) commercial grade marine and land mobile hybrid radio in the world*.

* As of November 2021, researched by Icom.

Covering 136–174 MHz PMR Frequency

• In addition to VHF marine channels, the IC-M85E covers 136–174 MHz PMR channels. Up to 100 programmable channels are available for PMR use. Each channel is programmable with CTCSS and DTCS tone.

700 mW Powerful Audio

• Despite its compact body, the IC-M85E delivers 700 mW of loud audio. Clear communications is vital in noisy environments.

Private Conversation

• The radio has a built-in Voice Scrambler and provides private communication between stations (32-code, compatible with UT-112 voice scrambler unit).

Automated Emergency Alarm

• The IC-M85E has three emergency related functions: the MOB Alarm, Man Down and Lone Worker functions. If one of these functions are activated, the radio automatically makes an emergency alarm.

Instant Operation with Multi-Function Button

• Channel group changing (marine ⇔ PMR) or the scrambler function ON/OFF can be assigned in the multi-function button on the top panel. The Key lock function can be activated by holding the button.

IP67 and MIL-STD Rugged Construction

• The IC-M85E is built durable to endure 1 m submersion for 30 minutes and dust-tight protection. The radio also passes MIL-STD-810 specifications.

And More

• AquaQuake™ prevents audio degradation from a water-logged speaker
• Internal VOX capability for hands-free operation
• 21 hours of long battery life with BP-294 (TX: RX: Standby=5:5:90.)
• 5 W output power
• The self check function checks internal temperature, and connected battery voltage (over voltage detection)
• Monitor function
• Priority scan function
• Dual/Tri-watch function for monitoring CH16 and/or call channel
• Favorite channel function for quick access to often used channels
