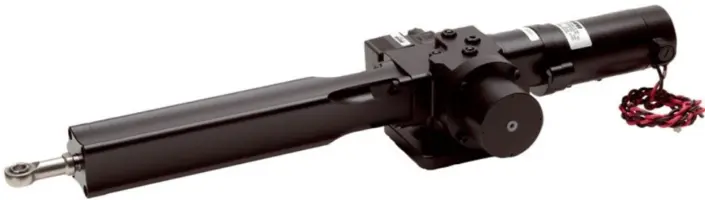

B&G – T2 Pilot Hydraulic Ram 24V

Description

B&G Ram drives combine a hydraulic cylinder, pump, motor, clutch and reservoir in one compact unit.

A solenoid clutch is engaged to extend or retract the rod.  The cylinder and its mounting are protected by integral relief valves.

Technical Data for T0, T1, T2 & T3 Rams

Performance

• Maximum Thrust (intermittent) – T0 = 350kg, T1 & T2 = 675kg, T3 = 1119kg

• Hard over time nominal – T0 = 12 secs, T1 = 13 secs , T2 = 9 secs, T3 = 13 secs

Electrical

• Motor Voltage nominal – 12 or 24 volts

• Protection – IP44

• Coil power continuous – 12 watts

Materials

• Body – Aluminium BS1490

• Piston rod – Chrome plated Stainless Steel
