Description
POWER THE PARTY

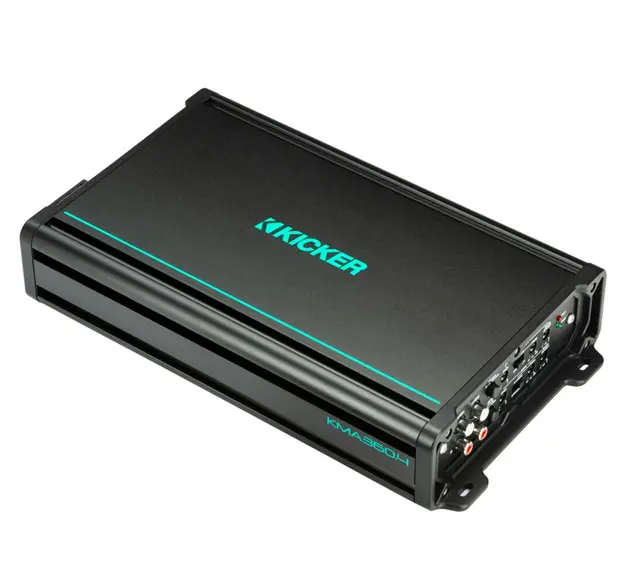

This amp features a variable bass boost with KickEQ™, giving you as much as 6dB of extra bump. Powering as many as eight speakers, this amplifier makes your entire boat sound like a floating concert! A powerful 12dB crossover is also included, letting you quickly tune your system to perfection.
Class A/B
500 Watts of Dynamic Power
Four-Channel Amplifier with Bridging Capability
Conformal-Coated Circuit Board
Variable 12dB Crossover
KickEQ™ Variable 6dB Bass Boost
Real Marine™ ABYC/NMMA-Compliant Power Connections
316L Stainless-Steel Hardware Included
Want setup help? Go to KICKER U for a free woofer-and-amp configuration app!
This KM-Series amplifier delivers 90 watts into four channels, or 180 watts bridged into two channels. See below for more details.
Specifications
POWER [watts/ch], 2 OHM STEREO – 90 x 4
POWER [watts/ch], 4 OHM STEREO – 65 x 4
POWER [watts/ch], 4 OHM BRIDGED MONO – 180 x 2
DYNAMIC POWER [watts] – 500
Dimensions [in] all models – 2-5/16H x 7-1/8W x ___L 12-7/16
Dimensions [cm] all models – 5.9H x 18.0W x ___L 31.5
FREQUENCY RESPONSE [Hz] – 10-20k, +0/-1dB
INPUT SENSITIVITY
High Level 250mV-10V
Low Level 125mV-5V
SIGNAL-TO-NOISE RATIO – >95dB, a-weighted, re: rated power
ACTIVE CROSSOVER – 12dB/octave, variable 50-200Hz, selectable high pass, low pass or all pass
KickEQ™ BOOST – Variable 0-6dB, centered @ 40Hz
